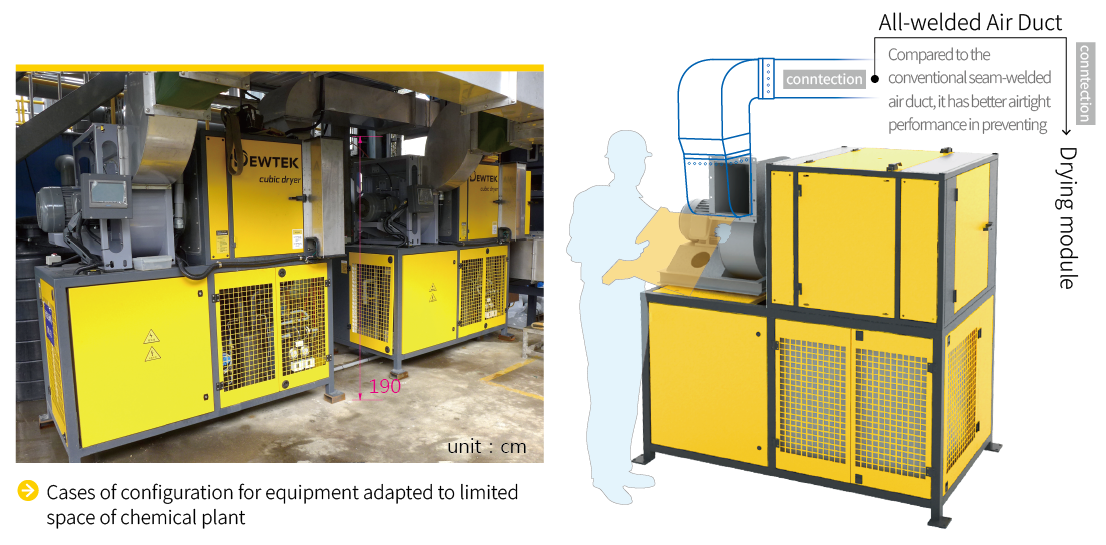

Employ fully welded air ducts to prevent air leakage and feature better airtightness.
  • Single Unit Split Sludge Dryer-03.jpg
  • Single Unit Split Sludge Dryer-01.jpg
  • Single Unit Split Sludge Dryer-02.jpg
  • Single Unit Split Sludge Dryer-04.jpg
  • Single Unit Split Sludge Dryer-05.jpg
DETAIL

Diverse configuration to meet various drying requirements

The single main unit series is ideal for users with more environmental constraints, special production lines in the factory, and exclusive drying requirements; Dewtek is always ready to work with you to integrate and plan the system you need.(The official website shows a limited number of solutions available. Call or contact us for any of your special needs.)

Characteristics:

  • Officially certified IE3 energy-saving fans.
  • Applicable for sites with daily treatment capcity in range of 3000kg~10 tons.
  • A system with semi-automatic requirements suitable for different plant layout.
Model Recommended processing
volume (moisture content)
Weight reduction
capability
Energy consumption
(host)
Minimum area
requirements
(sqm)
Drying chamber
70%→40%
kg/day
80%→40%
kg/day
kg/day kg/hr kw kwh/kg Single
unit
Single drying
basket
Dual drying
basket
Triple drying
basket
SD-400 800 600 400 15.0~18.3 7.3~9.1 0.3~0.5 2.74
SD-500 1000 750 500 18.8~22.9 12.2~15.2 2.74
SD-600 1200 900 600 22.5~27.5 12.2~15.2 2.74
SD-800 1600 1200 800 30.0~36.7 13.0~16.2 2.74
SD-1000 2000 1500 1000 37.5~45.8 16.0~20.0 4.60
SD-1200 2400 1800 1200 45.0~55.0 20.5~25.6 4.60
SD-1500 3000 2250 1500 56.3~68.8 21.6~27.0 4.60
SD-2000 4000 3000 2000 75.0~91.7 29.0~36.2 4.89
SD-2300 4600 3450 2300 86.3~105.4 40.9~51.1 4.89
SD-2700 5400 4050 2700 101.3~123.8 44.4~55.5 4.89
SD-3500 7000 5250 3500 131.3~160.4 61.3~76.6 4.89
SD-4000 8000 6000 4000 150.0~183.3 68.1~85.1 6.45
     The content of catalogue is subject to change based on the actual requirements and working conditions. The Company reserves the right to make changes in designs.
