Dewtek has won patents for the industry's smallest drying equipment for erecting anywhere and operating in small sites with a limited amount of sludge.
Integrated Sludge Dryer-05.jpg
/
Integrated Sludge Dryer.jpg
/
Integrated Sludge Dryer-01.jpg
/
Integrated Sludge Dryer-02.jpg
/
  • Integrated Sludge Dryer-05.jpg
  • Integrated Sludge Dryer.jpg
  • Integrated Sludge Dryer-01.jpg
  • Integrated Sludge Dryer-02.jpg
DETAIL

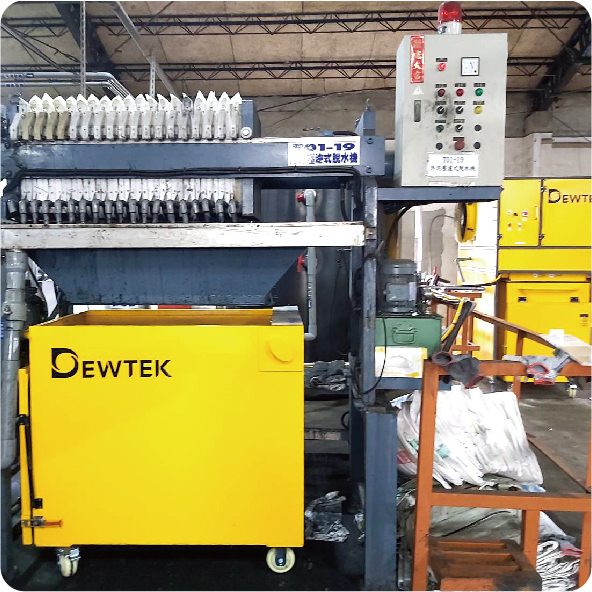

The smallest model in the industry thanks to multiple invention patents

The system can be fitted into an area up to 0.76 sqm the main unit and the feeder tank can be designed according to users’ processing capacities to optimize the drying performances and save electricity and money at the same time.(The official website shows a limited number of solutions available. Call or contact us for any of your special needs.)

Characteristics：

  • Thanks to its minimized footprint the Dewtek systems can be used in plants of limited space with high flexibility.
  • Applicable for sites with daily treatment capcity in range of 150kg~3 tons.
  • Low automation requirements.

PATENTED DIVERSION
DESIGN

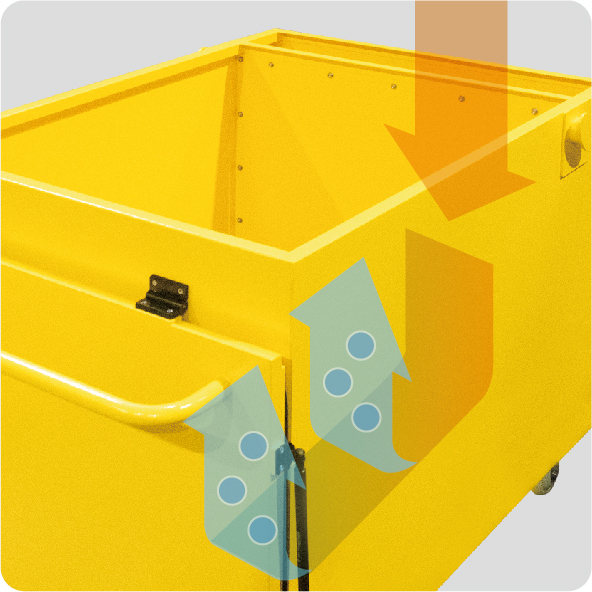

Flow airs from bottom to top with a special designed air duct to get a greater air contact area and more uniform drying.

MORE OPTIONS
For greater processing
capacities, you may opt to add more loading jigs or choose trolleys or drying baskets instead.



   Model    Recommended processing
volume (moisture content) kg/day		 Weight reduction capability Energy consumption
(host)		 Minimum area
requirements
(sqm)		 Drying chamber
70%→40% 80%→40%   kg/day   kg/hr kw kwh/kg  Mini  Single
trolley		 Dual
trolley		 Drying
basket
SD-75 150 112.5 75 2.8~3.4 1.7~2.1 0.4~0.6 0.76 ●
SD-100 200 150 100 3.8~4.6 2.1~2.6 0.76 ●
SD-125 250 187.5 125 4.7~5.7 2.3~2.9 0.76 ●
SD-150 300 225 150 5.6~6.9 2.6~3.2 1.75   ●
SD-200 400 300 200 7.5~9.2 4.8~6.0 1.75   ●
SD-300 600 450 300 11.3~13.8 5.2~6.5 1.75   ●
SD-400 800 600 400 15.0~18.3 7.3~9.1 0.3~0.5 3.17   ●   ●
SD-500 1000 750 500 18.8~22.9 12.2~15.2 3.17   ●   ●
SD-600 1200 900 600 22.5~27.5 12.7~15.9 3.17     ● ●
SD-800 1600 1200 800 30.0~36.7 13.0~16.2 4.83     ● ●
SD-1000 2000 1500 1000 37.5~45.5 16.0~20.0 5.03     ● ●
SD-1200 2400 1800 1200 45.0~55.0 20.5~25.6 5.03     ● ●
The content of catalogue is subject to change based on the actual requirements and working conditions. The Company reserves the right to make changes in designs.
